Component Options For Raised Bed Set Up Using TLEZ Dripline |

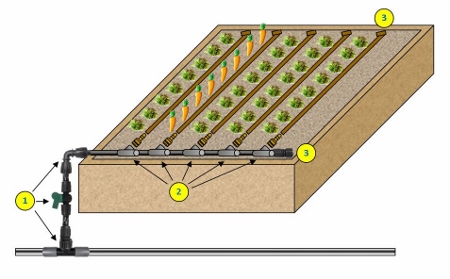

1 | Connection from Mainline to Raised Bed or Garden Area (use either 1/2” or 3/4” Solid Drip Tubing) |
![DL-ST600 - Drip Irrigation Direct-Loc Swivel Tee .600 ID EL x EL x 3/4" FHT Swivel - 700 or 710 Tubing (C2A6)](https://www.irrigationdirect.ca/images/P/pi_16544-02.jpeg) | DL-ST600 | Direct Lock Fitting to create “T” to Garden Bed (with Swivel Fitting for easy removal of entire Bed Assembly. For Connection from 3/4” Line use DD-ST940. |
![DL-MH600 - Drip Irrigation Direct-Loc Male Hose End .600 ID EL x 3/4" MHT - 700 or 710 Tubing (C3A1)](https://www.irrigationdirect.ca/images/P/pi_16542-02.jpeg) | DL-MH600 | Male Hose Adaptor connects to either DL-ST600 or DD-ST940. You now connect 1/2” Solid Drip Tubing to the DL-MH600. Note: You can sutbstitute these first two components with either a single DL-T600 or a DD-T940700 (if using a 3/4" header) |
![DL-FCV600 - Drip Irrigation Perma-Loc Easy Loc 1/2" Flow Control Valve (C6A2)](https://www.irrigationdirect.ca/images/P/pi_16499-02.jpeg) | DL-FCV600 | Flow Control Valve to shut off or isolate watering for Garden Bed. |
![DL-L600 - Drip Irrigation Perma-Loc Elbow .600 ID DL x DL - 700 or 710 Tubing. (C6B2)](https://www.irrigationdirect.ca/images/P/pi_16501-02.jpeg) | DL-L600 | Direct Lock Elbow. |
2 | Connection assembly from 1/2” Tubing to TLEZ 12mm Dripline (17mm Tubing Can also be used with 17mm fittings. |
![A1-HT66HT - PERMA-LOC X PERMA-LOC X MALE HOSE THREAD](https://www.irrigationdirect.ca/images/P/A1-HT66HT.jpg) | A1-HT66HT | Connects to 1/2” line and provides a 1/2” MHT (male hose thread) fitting. |
![Image size: 400x373, 12.779Kb Image type: jpeg](https://www.irrigationdirect.ca/image.php?type=P&id=19890&ts=1666891316) | NDS PHA75 | 3/4" Female Hose Thread x 3/4" Female Pipe Thread Swivel Adapter |
![T12050MA - 12mm 1/2" MPT Male Threaded Adapter Netafim Techline EZ Dripline (D3B6)](https://www.irrigationdirect.ca/images/P/Three%20Quarter%20MPT%20Adaptor.jpg) | T12075MA | 1/2” Male Pipe Thread Fitting x 12mm Insert Fitting for direct connection to 12mm Dripline. If using 17mm Dripline a T17050MA will be required. |
3 | End Cap Connections |
![T17F8 - 17mm Figure 8 - Netafim Part Number TLFIG8 (D2B1)](https://www.irrigationdirect.ca/images/P/pi_16426-02.jpeg) | TL12F8 | Figure 8 Fitting for closing the end of 12mm Dripline Runs. For 17mm Tubing use DD-F8. T12SOV (or TLSOV for 17mm) Fitting can also be used for drainage at the end of dripline runs. |
![DL-EC600 - Drip Irrigation Direct-Loc End Cap .600 ID DL x 3/4" MHT w/ Cap - 700 or 710 Tubing. (C6A4)](https://www.irrigationdirect.ca/images/P/pi_16498-02.jpeg) | DL-EC600 | End Cap fitting for the end of 1/2” Solid Drip tubing runs. Allows for easy drainage at season end. |
4 | Additional Components To Consider |
![DD-MC700B - 1/2" Tubing Mounting Clamp with Nail - Black. (C4B2)](https://www.irrigationdirect.ca/images/P/pi_16441-02.jpeg) | DD-MC700 | 1/2” Hold Down Clips for Nailing to Wood Raised Beds. |
![TLS6 - Netafim Drip Tubing Hold Down 6" Wire Stake 1/8" to 3/4" tubing 25 pack (C6A1)](https://www.irrigationdirect.ca/images/P/pi_16633-02.jpeg) | TLS6 | Hold Down Stakes to keep tubing placed in soil. |
